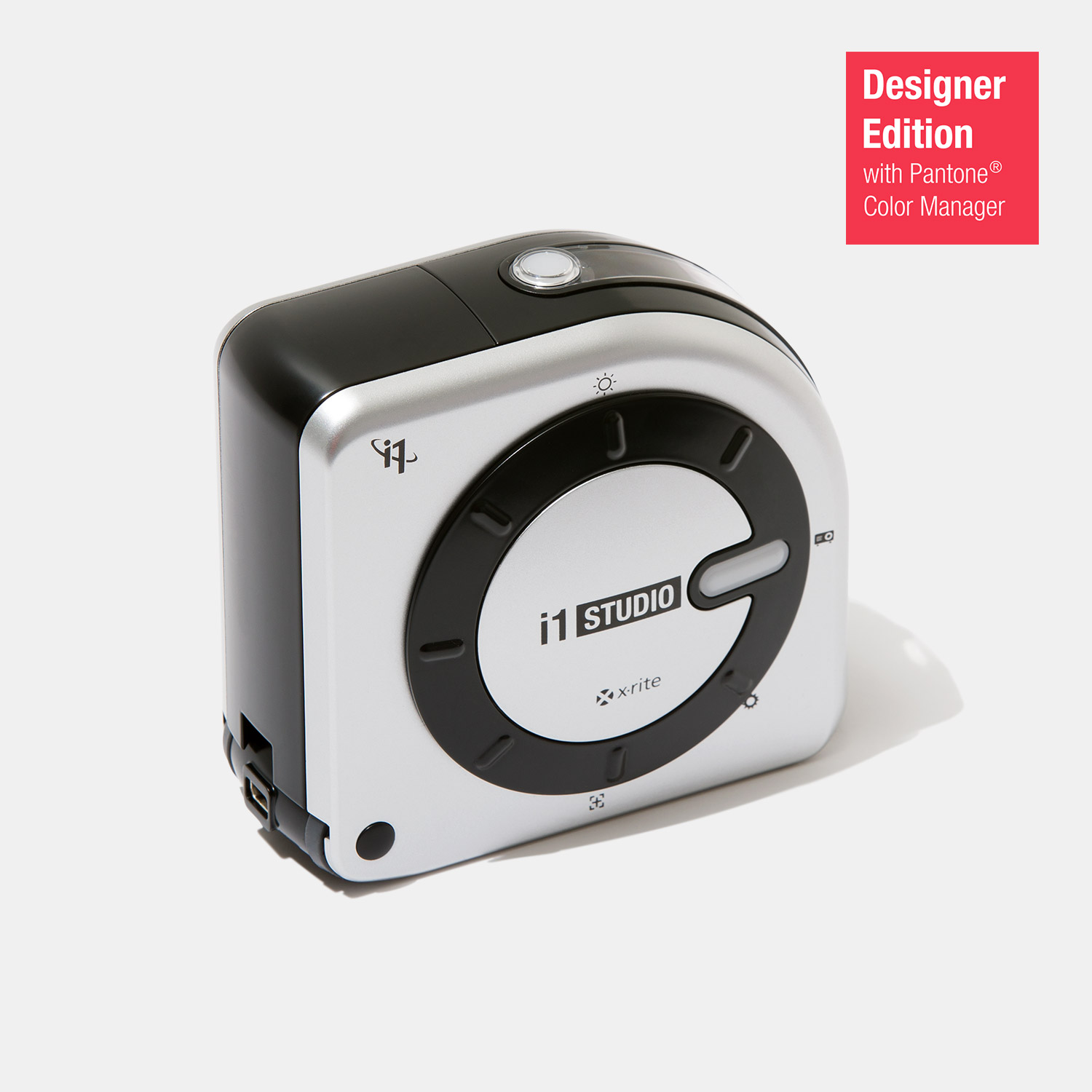

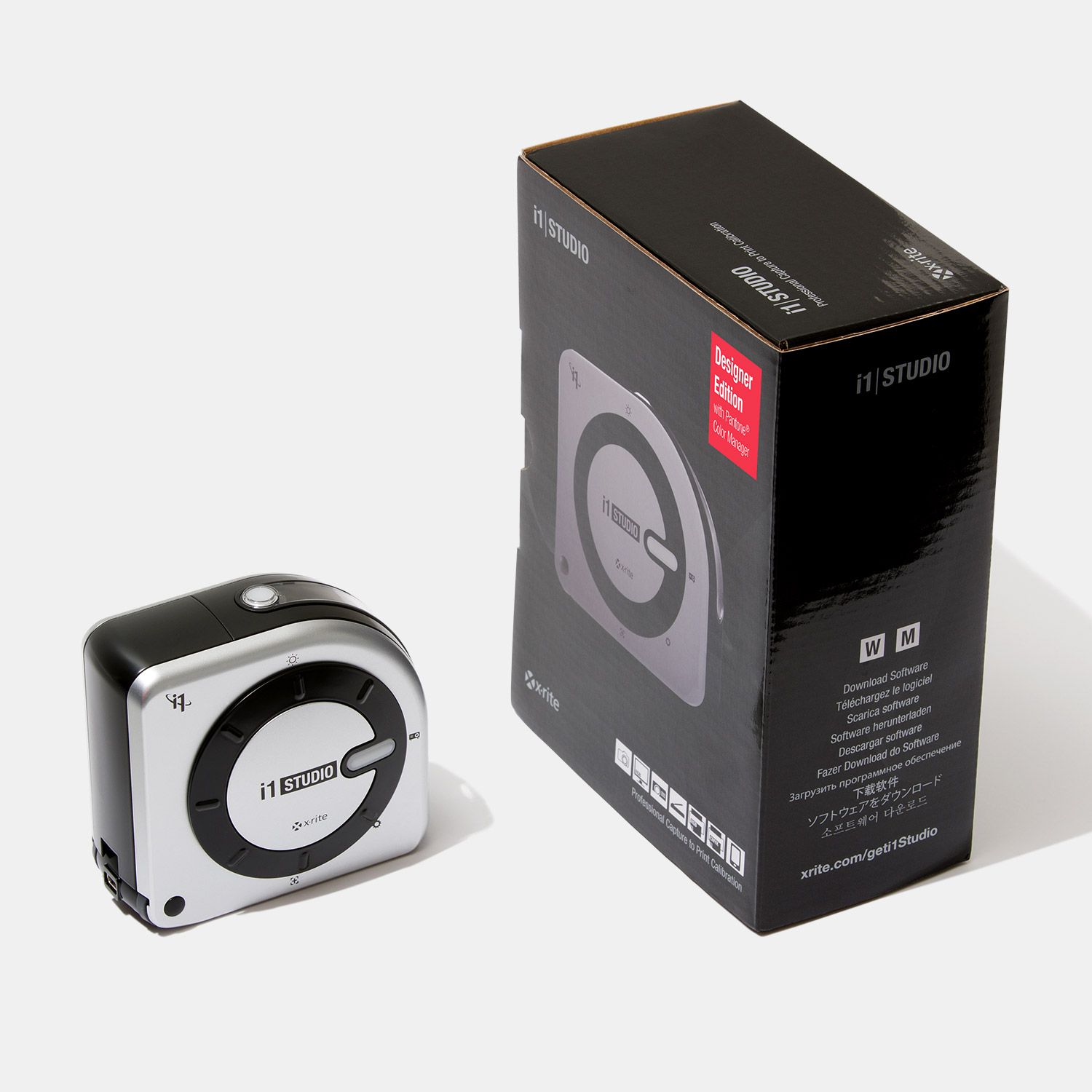

i1Studio Designer Edition

i1 Studio Specifications:

Aperture: 6mm

Inter-Instrument Agreement: Inter-instrument agreement: 0.6?E*2000 average, max. 1.5?E*2000 max. (deviation from X-Rite i1Studio manufacturing standard at a temperature of 23°C for single measurement mode on 12 BCRA tiles D50, 2°)

Languages Supported: Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish

Light Source: White LED

Macintosh:

• MacOS X 10.11x, 10.12x or 10.13x (with latest upgrades installed)
• 512MB RAM (2GB recommended)
• Intel® Core 2 Duo CPU or better CPU
• Up to 500MB of available disk space (depending on components installed)
• Powered USB port
• Monitor resolution of 1024 x 768 pixels or higher
• Latest drivers for video card installed
• High-speed internet connection required for software install, download and automatic software update
• User must have Administrator rights to install and uninstall the application

Measurement Conditions: UV Cut (M2)

Measurement Geometry: 45° / 0°

Mobile Device Compatibility:

ColorTRUE Mobile Device Compatiblity

Apple iOS

• iPad 2, 3rd gen, 4th gen, Air, Mini, & Mini 2nd gen running iOS 7.x or later
• iPhone 4, 4S, 5, 5c, & 5s running iOS 7.x or later
• iPod Touch running iOS 7.x or later

Spectral Analyzer:

• Spectral analyzer: holographic diffraction grating with diode array
• Spectral reporting: 10 nm, between 380nm, and 730nm

Windows:

• Microsoft Windows 7® 32 or 64 bit
• Microsoft Windows 8® 32 or 64 bit
• Microsoft Windows 8.1® 32 or 64 bit
• Microsoft Windows 10® 32 or 64 bit
• All operating systems should have latest Service Pack installed
• 512MB RAM (2GB recommended)
• Intel® Core 2 Duo or AMD Athlon™ XP or better CPU
• Up to 500MB of available disk space (depending on components installed)
• Powered USB port
• Monitor resolution of 1024 x 768 pixels or higher
• Latest drivers for video card installed
• Dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded
• Network adaptor installed and driver loaded
• High-speed internet connection required for software install, download and automatic software update
• User must have Administrator rights to install and uninstall the application

Short Term Repeatability Emissive: x, y: ±0.002 typical (5000K @ 80 cd/m2)

Short Term Repeatability Reflective: 0.1?E*2000 (D50, 2°) typical, mean value of 10 measurements on white

Pantone Color Manager Software Minimum suggested hardware requirements:

Macintosh:

• Mac OS X version 10.11\10.12\10.13 (with latest updates installed)
• Intel^® Processor
• 1GB RAM
• 1GB of available disk space
• Minimum monitor resolution 1280 x 1024
• DVD drive or high-speed internet connection required for software install, download and * automatic software update

Windows:

• Microsoft^® Windows 7 32-bit and 64 bit (with latest Service Packs and updates installed)
• Microsoft Windows 8\8.1 32-bit and 64 bit (with latest Service Packs and updates installed)
• Microsoft Windows 10 32-bit and 64 bit (with latest Service Packs and updates installed)
• Intel Pentium^® IV or higher processor
• 1GB RAM
• 1GB of available disk space
• Minimum monitor resolution 1280 x 1024
• Network adaptor installed and driver loaded
• DVD drive or high-speed internet connection required for software install, download and automatic software update
